It also relays answers from DHCP servers to DHCP clients. You can also select a DHCP relay service when you add a new logical router port.

Understanding Dhcp Relay Agents Netmanias

With vlan database created ip routing ip dhcp pool VLAN-MGT network 10000 2552552550.

Dhcp relay port. Hi Sarah If the relay agent inserts option 82 but does not set the giaddr field in the DHCP packet switch drops the packet and for that to work the DHCP server interface must be configured as a trusted interface by using the ip dhcp relay information trusted global configuration command. Both of the DHCP Server for the VLANs is at 19216801 so there should have two lists in the table. I would start by validating whether or not your DHCP server is able to issue IPs on VLAN 20.

Such device lacking dhcpd can see and drop the ports 6768 successfully. The DHCP Server setting is used to specify DHCP server for the VLANs. DHCP VLAN Relay can manually designate an L3 interface for all the VLANs as the default relay agent interface.

If the DHCP server you want to use is not on a network protected by your Firebox you must set up a branch office VPN BOVPN tunnel between your Firebox and the network where the DHCP server is for this feature to operate. Hi guys I ve an DHCP issue that works if the link is access mode but didnt work if I change it to trunk mode. In the SmartDashboard go to the Policy menu Global Properties Firewall.

By default if the gateway address is set to all zeros 0000 in the DHCP packet and the relay agent. Here we use an example to introduce the configurations of DHCP VLAN Relay. For a DHCP server to be able to assign an IP to a remote segment the Relay Agent must update the packet information and include the source network info into the GIADDR portion of the packet so that the DHCP server can determine what scope to use.

The DHCP relay agent is located between a PC and DHCP server as shown in Figure 2. DHCP uses UDP as its transport protocolDHCP messages from a client to a server are sent to the DHCP server port 67 and DHCP messages from a server to a client are sent to the DHCP client port 68. Access GS1920 via WebGUI and go to Advanced Application Mirroring.

For DHCP relay and DHCP proxy packets sent to the DHCP server from the router have both the source and destination UDP ports set to 67. The DHCP server responds using the same ports. How to configure the DHCP Relay agent on fortigate firewall with firmware build v640 build1579Complete demonstration of LAB setup.

If Port 67 is in use by another process the DHCP server cannot communicate with DHCPv4 Clients. The DHCP employs a connectionless service model using the User Datagram Protocol UDP. However when the line card receives these DHCP response packets it changes both port numbers from 67 to 68 before passing the packets to the Routing Engine.

Check Active and fill in the port number which connects to the PC in Monitor Port. For GS1920 VLAN1 you should be able to see the DHCP packets on the ports which one is connecting to ATP500 and the other is connecting to DHCP server. PID 940 is svhostexe which is being run by System.

Dhcp-request and dhcp-reply. The DHCP relay agent transfers DHCP messages from DHCP clients located on a subnet without a DHCP server to other subnets. DHCPv4 When a relay agent uses a non-DHCP UDP port not 67 to communicate with the DHCP server it MUST include the Source Port Sub-option in Relay-forward messages to indicate that.

Configure PID 940 to use a port other than 67. Make sure the Firebox has a route to the IP addresses you specify for DHCP relay. HP routing switches provide the DHCP relay agent to enable communication from a DHCP server to DHCP clients on subnets other than the one the server resides on.

Till now all the configuration about the DHCP Relay is done. I ran CurrPorts on the server and it shows that the port. Lets check if it does work.

It is implemented with two UDP port numbers for its operations which are the same as for the bootstrap protocol UDP port number 67 is the destination port of a server and UDP port. For Security Gateways R7720 or higher the applicable IPv4 DHCP services are the new DHCP services. DHCP replies to a client are sent as UDP unicasts or broadcasts with a source port of 67 and a destination port of 68.

The good part with these broadcasts and ARP packets is that they are not routed unless there is a DHCP relay. Enable the DHCP Relay. To configure DHCP Security Policy.

Select the router port that connects to the desired logical switch and click Edit. IPv4 DHCP relay traffic between relay and server is sent as UDP unicasts with source port of 67 and destination port of 67. DHCP relay traffic between relay and server is sent as UDP unicasts with source port of 67 and destination port of 67.

One trickery way to filter is to put a filtering bridge on the cable. Follow the Routing DHCP Relay Global Config. The DHCP relay servers you specify apply only to DHCP requests received on that interface.

All the DHCP packets can be forwarded through this interface so that the clients can get IP addresses from the DHCP server. Select a DHCP relay service from the Relay Service drop-down list and click Save. Select Configuration Router Ports.

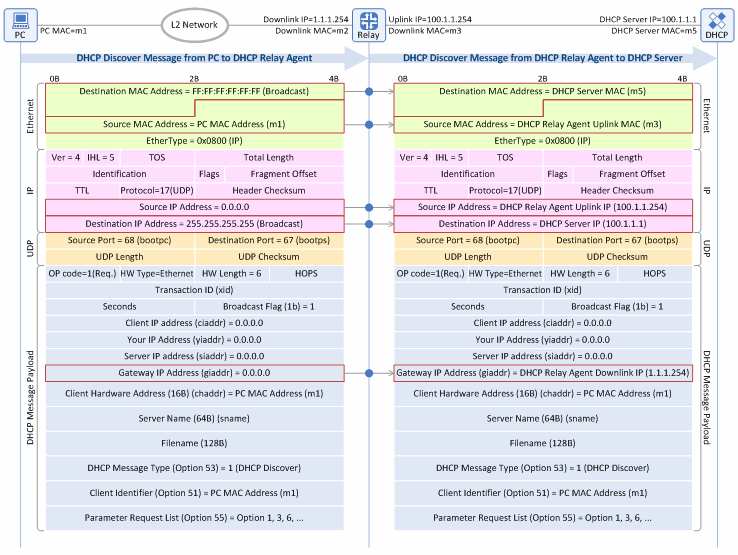

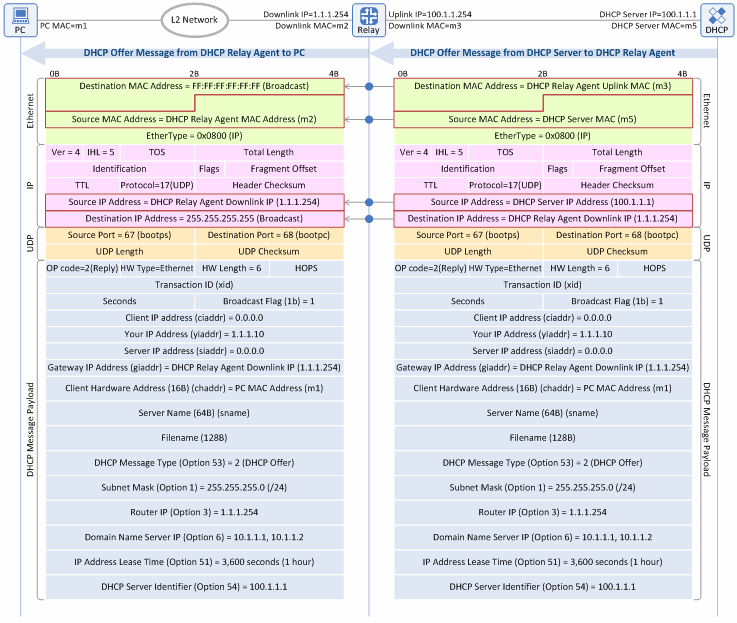

The DHCP relay agent receives DHCP Discover and Request messages broadcasted by the PC and unicasts them directly to the DHCP server. Internet-Draft DHCP Relay Source Port April 2017 31Changes to DHCP in RFC 2131 Section 41 of RFC 2131 specifies that.
